gasket paper ABIL N – various sizes

100% QUALITY: Elring Abil N gasket paper made from cellulose fiber with NBR binder – high strength, durable, flexible, oil and fuel resistant, temperature resistant... More details & documents

€1.46 incl. VAT €1.23 excl. VAT

In stock

Est. delivery Mon 19 Oct - Thu 22 Oct for €3.45

Select unit of measurement

Millimeter (mm)

Centimeter (cm)

Meter (m)

Thickness from 0.25 to 1.5 mm

Diameter

For business customers: In the checkout you can save a binding offer instead of paying.

Product number: DCK-015

Stock: 418

Weight: 1.3 kg

Stock: 418

Product number: DCK-015

Secure payment methods
Over 100,000 satisfied customers
German brand quality
Fast delivery

Custom shape or drawing part?

Upload your drawing as DXF or PDF – we will prepare an individual quote for you.

Request a quote

About this item

Product information "gasket paper ABIL N – various sizes"

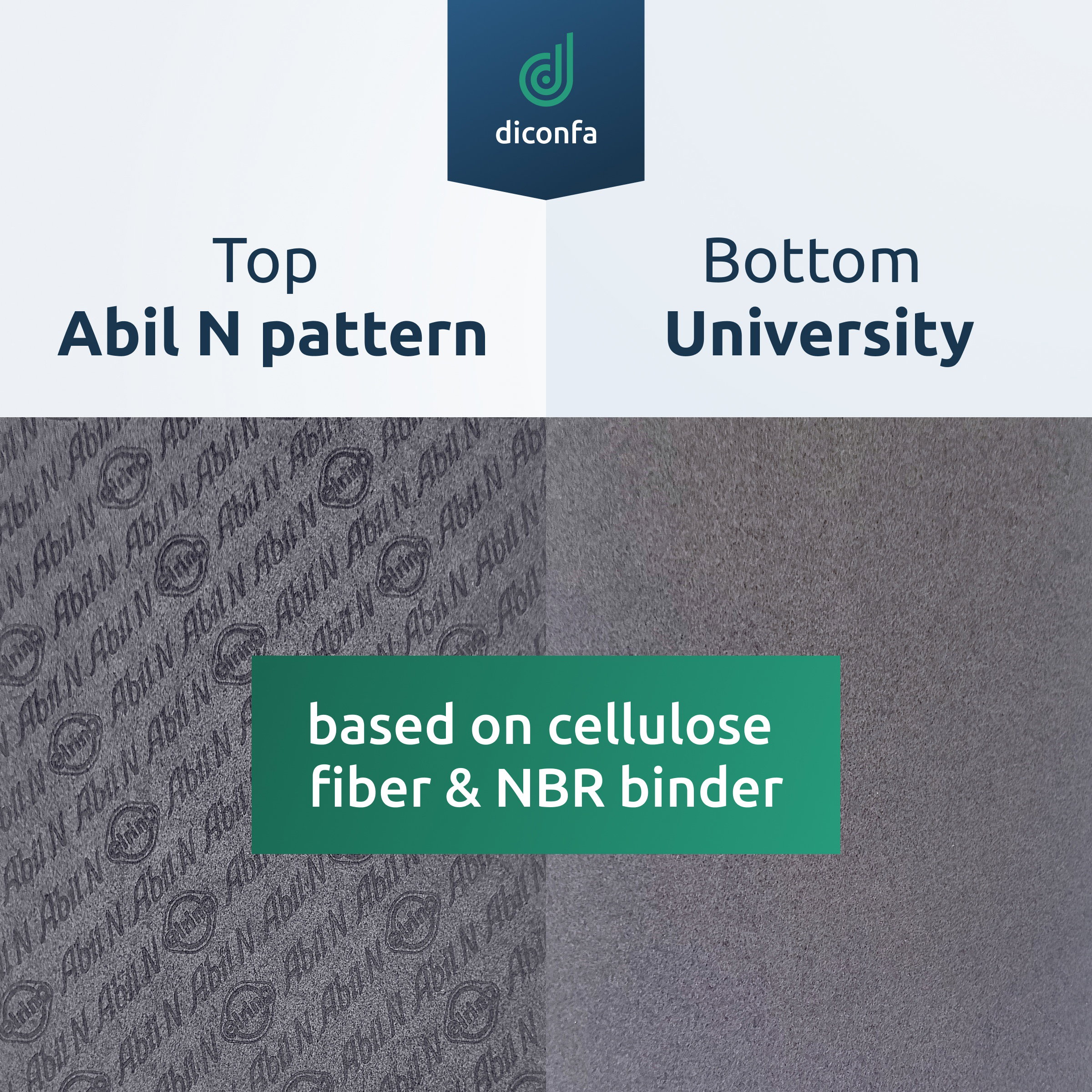

100% QUALITY: Elring Abil N gasket paper made from cellulose fiber with NBR binder – high strength, durable, flexible, oil and fuel resistant, temperature resistant up to 120 °C continuous (short-term up to 150 °C), and maximum pressure resistance of 10 bar.

FUNCTIONS: Suitable as gasket, underlay, protective or sealing layer in machines, engines, gearboxes, hydraulic and pneumatic systems, pipelines, flanges, fittings, and chemical apparatus.

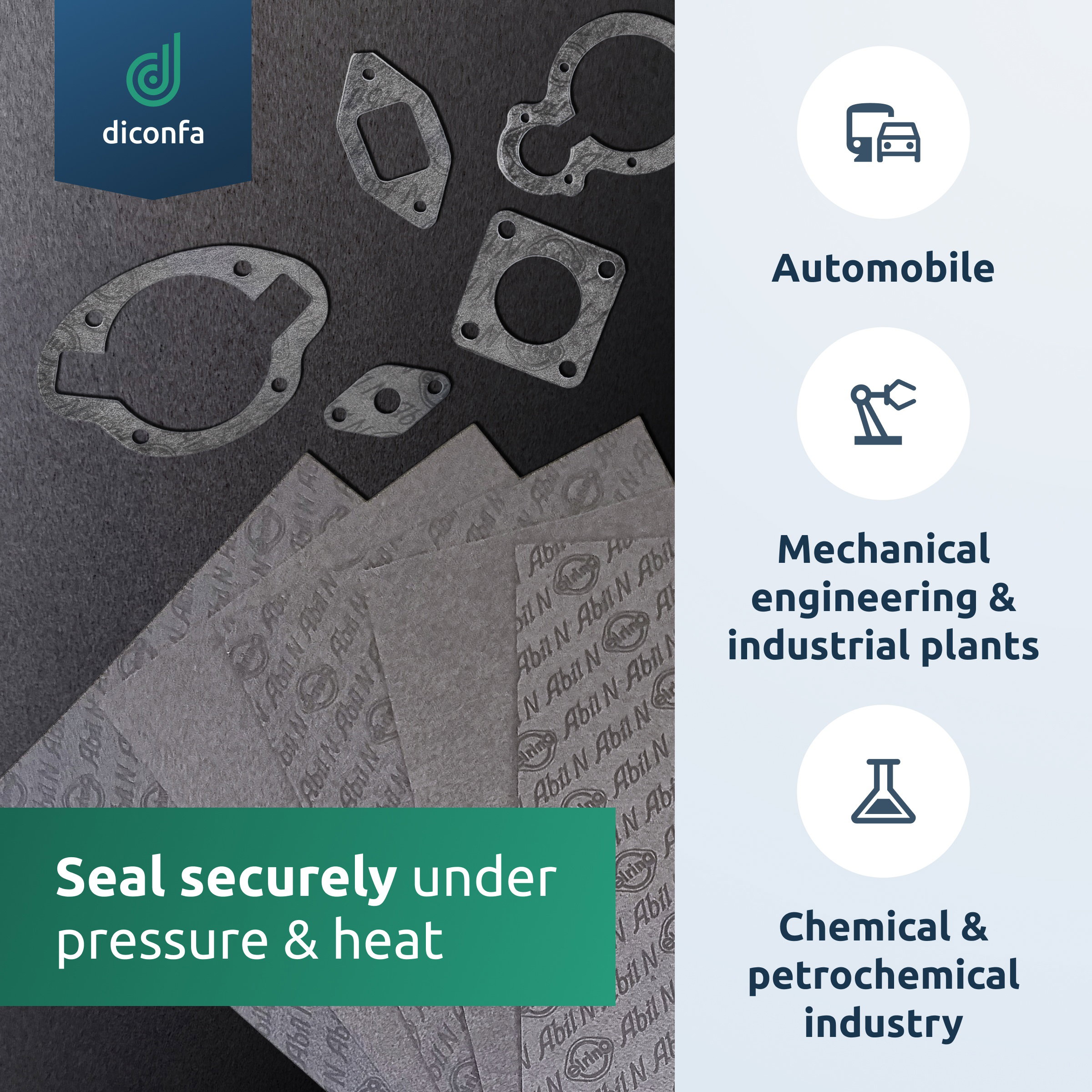

APPLICATIONS: Versatile use in vehicles (cars, trucks, vans, motorcycles, scooters), boats and ships, industrial plants, pumps and compressors, mechanical engineering, and chemical or hydraulic systems.

PROPERTIES: Resistant to oil, fuel, and grease; reliably seals against coolant and fuels; highly elastic and flexible; reduces maintenance and repair effort; withstands temperature peaks and mechanical loads up to 10 bar.

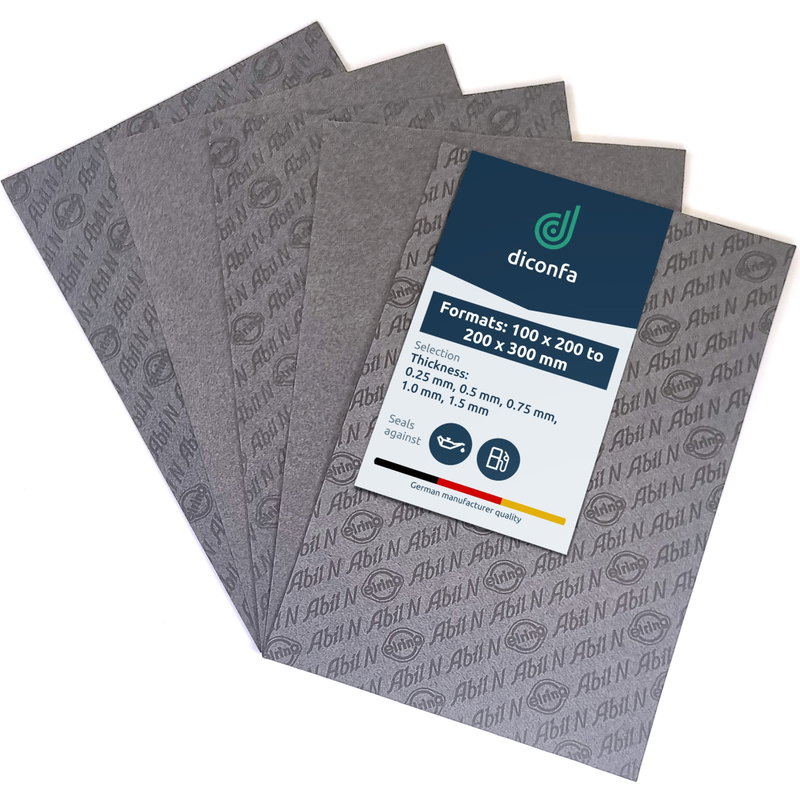

VARIANTS: Available in thicknesses from 0.25 mm to 1.5 mm and formats of 200 × 300 mm (approx. A5), 200 × 150 mm (approx. A5), and 100 × 200 mm (approx. DIN long).

PROCESSING: Easy to cut with scissors, utility knife, or punching tool. For precise gaskets, marking the components before cutting is recommended.

We work in accordance with the applicable tolerance table

Item Features

Color	Grey
Material	Abil N
Brand	diconfa
Length	100 mm - 200 mm
Width	150 mm - 300 mm
Thickness	0,25 mm - 1,5 mm
Material properties	Resistant to oil, fuel, and grease, with high elasticity and flexibility, withstands temperature peaks and mechanical loads up to 10 bar.
Areas of use	All types of vehicles (cars, trucks, vans, motorcycles, scooters), boats and ships, industrial plants, pumps, compressors and machinery, mechanical engineering, as well as chemical, hydraulic, and pneumatic systems.
