CW614N Brass Round Bar cut to size

Brass Round Bar | CW614N Ms58 | Bright Drawn, h9 Tolerance, Non-Magnetic | Ø 6–50 mm More details & documents

€2.68 incl. VAT €2.25 excl. VAT

€53.60 / m incl. VAT €45.00 excl. VAT

% quantity discount from 2 pieces available

Quantity	Unit price	Total price	Savings
1 pcs.	2,68 €/pcs.	2,68 €	0 %
2 pcs.	2,63 €/pcs.	5,26 €	2 %
3 pcs.	2,60 €/pcs.	7,80 €	3 %
4 pcs.	2,57 €/pcs.	10,28 €	4 %
5 pcs.	2,55 €/pcs.	12,75 €	5 %
6 pcs.	2,52 €/pcs.	15,12 €	6 %
7 pcs.	2,49 €/pcs.	17,43 €	7 %
8 pcs.	2,47 €/pcs.	19,76 €	8 %
9 pcs.	2,44 €/pcs.	21,96 €	9 %
10 pcs.	2,41 €/pcs.	24,10 €	10 %

In stock

Est. delivery Mon 19 Oct - Thu 22 Oct for €3.45

Select unit of measurement

Millimeter (mm)

Centimeter (cm)

Meter (m)

Length from 50 to 2,000 mm

Diameter

For business customers: In the checkout you can save a binding offer instead of paying.

Product number: DCK-237

Stock: 771

Weight: 8.73 kg

Stock: 771

Product number: DCK-237

Secure payment methods
Over 100,000 satisfied customers
German brand quality
Fast delivery

Custom shape or drawing part?

Upload your drawing as DXF or PDF – we will prepare an individual quote for you.

Request a quote

About this item

Product information "CW614N Brass Round Bar cut to size"

PROFESSIONAL QUALITY: Precision-manufactured brass round bar, cut exactly to the specified dimensions. Each bar is perfectly straight and machined to tight h9 diameter tolerance. Both ends are fully deburred for immediate use in further machining or assembly operations.

MATERIAL & QUALITY: High-quality brass alloy CW614N (Ms58 / CuZn39Pb3), bright drawn solid round stock manufactured in accordance with DIN EN 12164 / EN 1982. The surface is fully bright and free of residues or adhesions. This is solid full-material bar stock, not hollow tubing. The material is non-magnetic.

ADVANTAGES: CW614N brass offers outstanding machinability for turning, milling, drilling, grinding, and sawing operations. The alloy provides excellent solderability, good corrosion resistance, and reliable dimensional accuracy. Its lead content ensures clean chip breaking during CNC and manual machining processes, making it highly suitable for automated production environments.

APPLICATIONS: Widely used in mechanical and plant engineering, CNC turned parts, construction components, sanitary fittings, and valve bodies. Typical finished parts include shafts, gears, fasteners, bushings, window and door hardware, screws, bolts, sleeves, threaded inserts, spacers, axles, and decorative elements. Also suitable for model building, craft projects, and prototype development.

STANDARDS & SPECIFICATIONS: Manufactured to DIN EN 12164 / EN 1982. Diameter tolerance class h9. Cutting tolerance is +/- 2 mm on length. All dimensions are specified in millimeters (mm). The material may exhibit minor storage marks or identification markings.

TECHNICAL DATA: Material designation: CW614N (Ms58, CuZn39Pb3). Shape: round solid bar, bright drawn. Tolerance: h9. Surface condition: bright, clean. Machinability: excellent turning, milling, and drilling quality. Magnetic properties: non-magnetic.

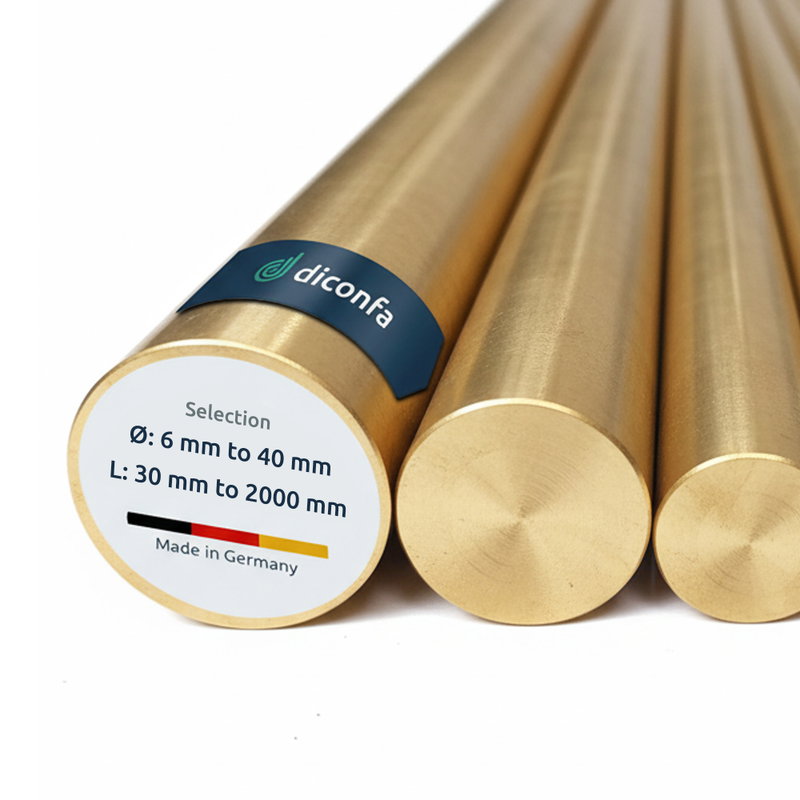

VARIANTS: Available in diameters from 6 mm to 50 mm (6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 25, 30, 40, 50 mm). Lengths range from 30 mm to 2000 mm. Diameter and length are selected individually per order.

We work in accordance with the applicable tolerance table

Item Features

Color	Brass-Colored (Bright Finish)
Material	Messing CW614N (Ms58, CuZn39Pb3)
Length	30–2,000 mm
Cross section	Round, solid material
Material properties	Bright drawn, h9 tolerance, excellent machinability, solderable, corrosion-resistant, non-magnetic, deburred on both sides
Areas of use	Mechanical engineering, plant engineering, automotive industry, toolmaking, metal construction, sanitary engineering, model making, crafts, fittings, CNC turned parts, exhibition construction
