diconfa PTFE Teflon round rod made to measure

QUALITY: The virgin white PTFE round rod (also known as Teflon) is manufactured according to German quality standards. It is precisely cut, deburred, and made from premium-grade... More details & documents

€3.66 incl. VAT €3.08 excl. VAT

% quantity discount from 2 pieces available

Quantity	Unit price	Total price	Savings
1 pcs.	€3.66/pcs.	€3.66	0 %
2 pcs.	€3.59/pcs.	€7.17	2 %
3 pcs.	€3.55/pcs.	€10.65	3 %
4 pcs.	€3.51/pcs.	€14.05	4 %
5 pcs.	€3.48/pcs.	€17.38	5 %
6 pcs.	€3.44/pcs.	€20.64	6 %
7 pcs.	€3.40/pcs.	€23.83	7 %
8 pcs.	€3.37/pcs.	€26.94	8 %
9 pcs.	€3.33/pcs.	€29.98	9 %
10 pcs.	€3.29/pcs.	€32.94	10 %

In stock

Delivery Sat 6 Dec - Wed 10 Dec for €2.50

Select unit of measurement

Millimeter (mm)

Centimeter (cm)

Meter (m)

Length from 10 to 1,000 mm

mm

Diameter

Stock: 2486

Product number: DCK-086

Weight: 2.2 kg

Stock: 2486

Product number: DCK-086

Secure payment methods
Over 100,000 satisfied customers
German brand quality
Fast delivery

About this item

Product information "diconfa PTFE Teflon round rod made to measure"

QUALITY: The virgin white PTFE round rod (also known as Teflon) is manufactured according to German quality standards. It is precisely cut, deburred, and made from premium-grade material. Raw, untreated surface – may show slight storage marks. PTFE features excellent sliding properties, very low friction, and outstanding chemical resistance.

MATERIAL: Virgin white PTFE is light- and weather-resistant, self-extinguishing, and flame-retardant. This high-performance plastic is thermally stable from -200°C to +260°C (melting point 325°C) and ideal for demanding industrial and craft applications.

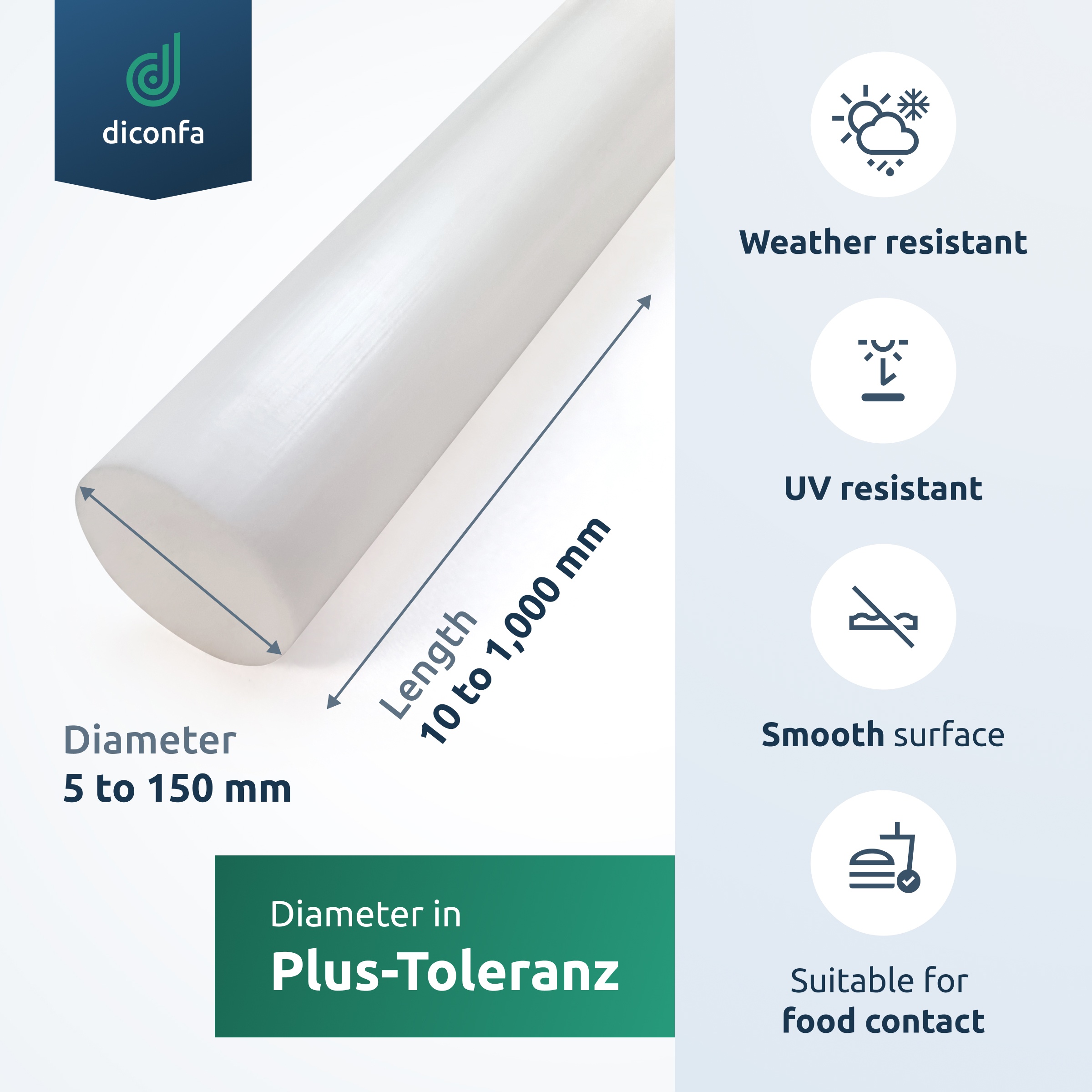

VARIANTS: The PTFE round rod is available in diameters from 5 mm to 150 mm and lengths from 10 mm to 1,000 mm. Length tolerance: -0 / +3 mm.

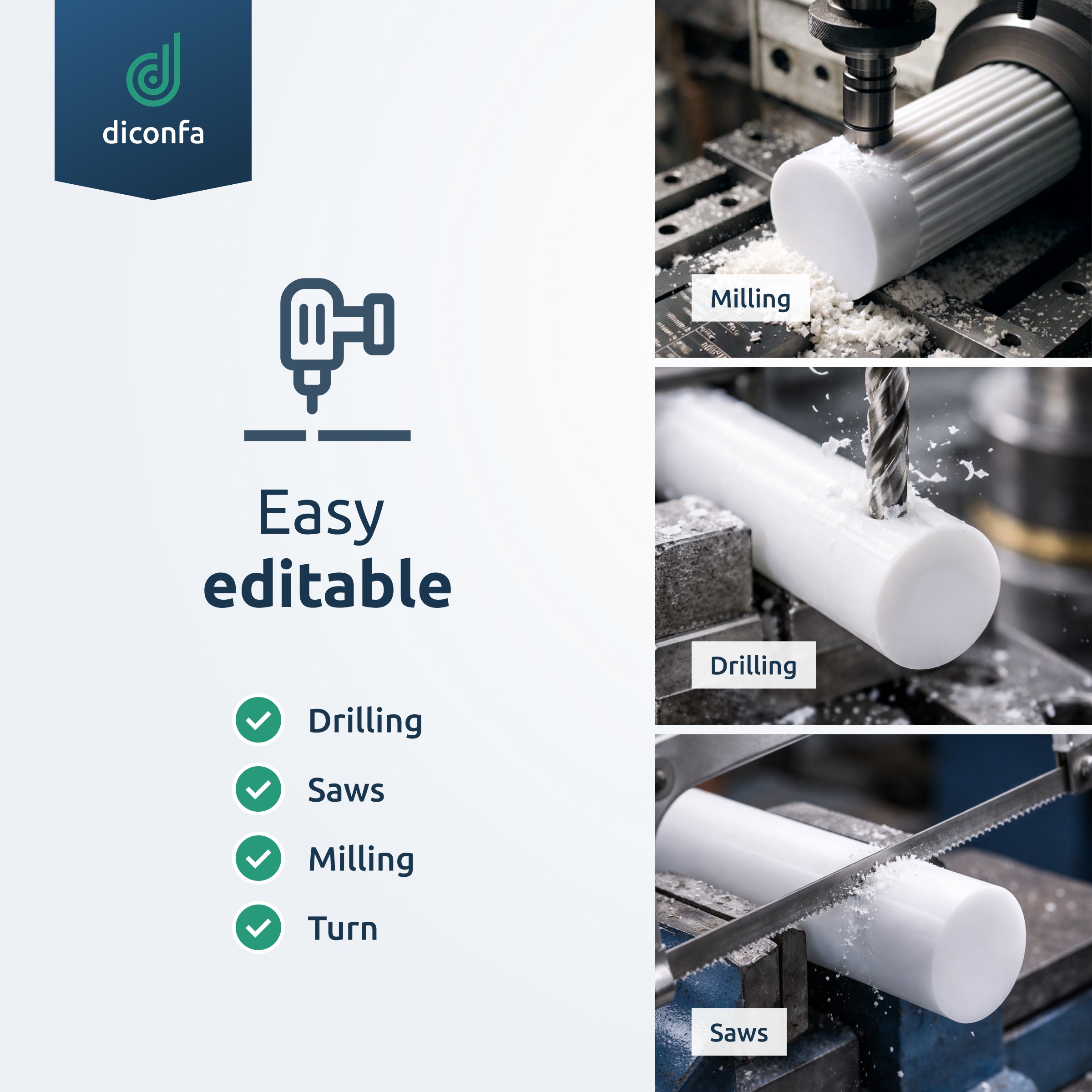

PROCESSING: Recommended machining (with cooling): turning, milling, sawing, drilling, or welding. The plastic rod is easy to machine and provides high dimensional accuracy during processing.

APPLICATIONS: Industry, crafts, mechanical and plant engineering, model making, food technology, art, design, decoration, furniture, hotels, gastronomy, exhibition construction, advertising, marketing, handrails, stair construction, pump and valve bodies, seals, insulators, optical components, and more.

PROPERTIES: High mechanical strength, rigidity, and hardness. Excellent wear and abrasion resistance. Non-flammable, self-extinguishing, chemically resistant, UV-stable, weatherproof, low water absorption, good electrical insulation.

TECHNICAL DATA: Density: 2.1–2.3 g/cm³ // Tensile strength: 27.6 MPa // Compressive strength: 12.9 MPa // Elongation at break: 230% // Temperature range: -200°C to +260°C.

Item Features

Color	White
Material	Teflon
Brand	diconfa
Length	10 mm - 1.000 mm
Diameter	5 mm - 150 mm
Material properties	chemical-resistant, UV-stable, weather-resistant, self-extinguishing, flame-retardant, thermally stable from -200°C to +260°C, deburred, excellent sliding properties, very low friction, high mechanical strength, high rigidity, high hardness, excellent wear and abrasion resistance, low water absorption, good electrical insulator
Areas of use	industry, crafts, mechanical and plant engineering, model making, food technology, art, design, decoration, furniture construction, hotels, gastronomy, exhibition construction, advertising, marketing, handrails, stair construction, pump and valve bodies, seals, insulators, optical materials
