About this item

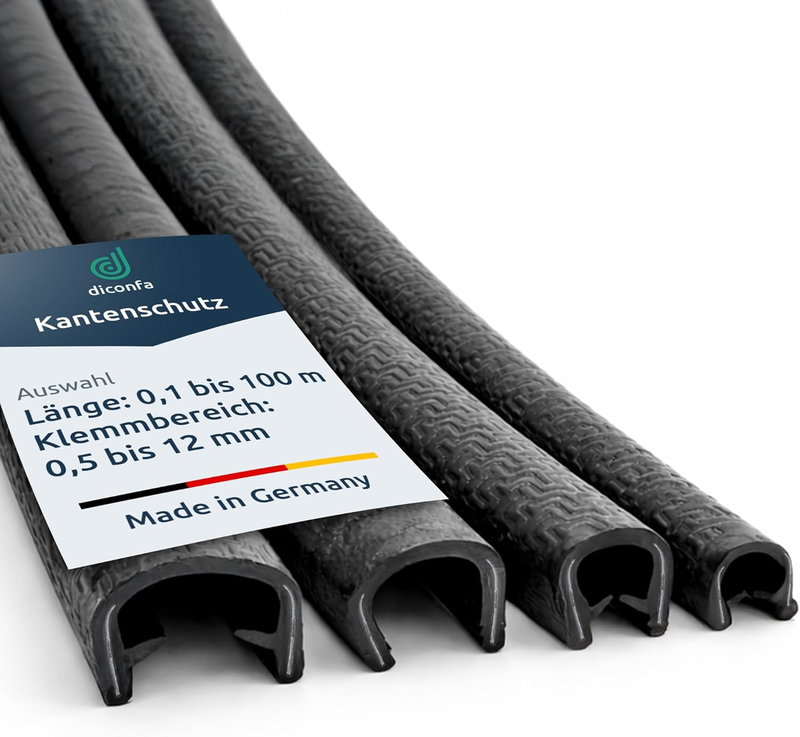

Product information "diconfa Edge Protection U-Profile PVC with Steel Insert Black Matt Clamping Range 0.5–12 mm Length 0.1–100 m"

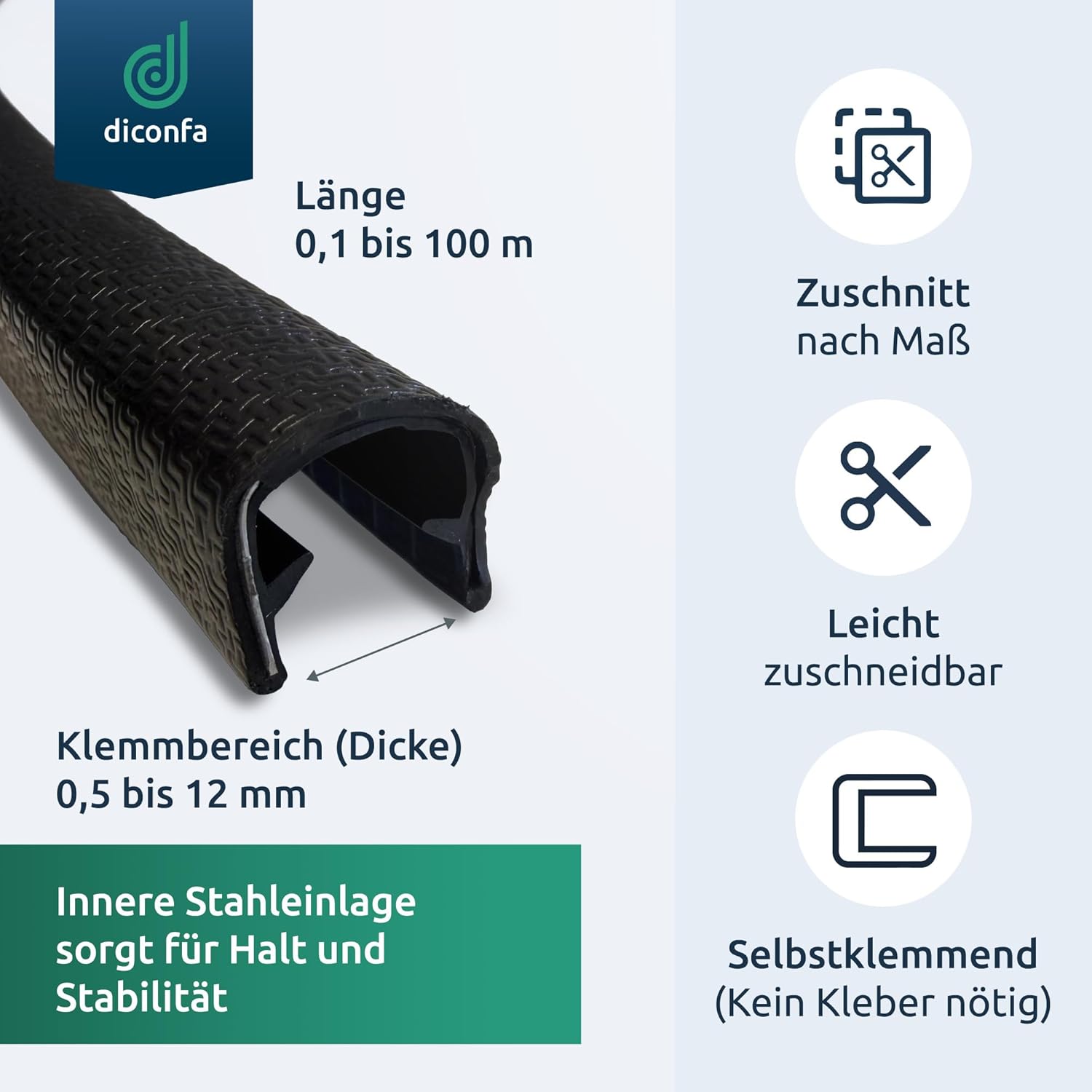

PROFESSIONAL QUALITY / CORE FUNCTION: This self-clamping edge protection profile reliably shields exposed edges on sheet metal, glass panels, wooden boards, plastic plates, and more. The U-shaped profile with integrated sealing lips grips firmly onto the material edge without any adhesive, preventing injuries from sharp edges and protecting surfaces from damage.


MATERIAL & QUALITY: Manufactured from flexible black matt PVC with an embedded steel insert for enhanced structural stability. The steel core ensures a secure, self-clamping hold while the soft PVC outer layer conforms to both straight and curved edges. Suitable for indoor and outdoor applications.


ADVANTAGES: No adhesive or additional fasteners are required for installation. Simply press the profile onto the edge to be protected. The material can be easily cut to the desired length using standard scissors or a utility knife. The steel reinforcement maintains consistent clamping pressure along the entire length, ensuring the profile stays securely in place even on irregular surfaces.

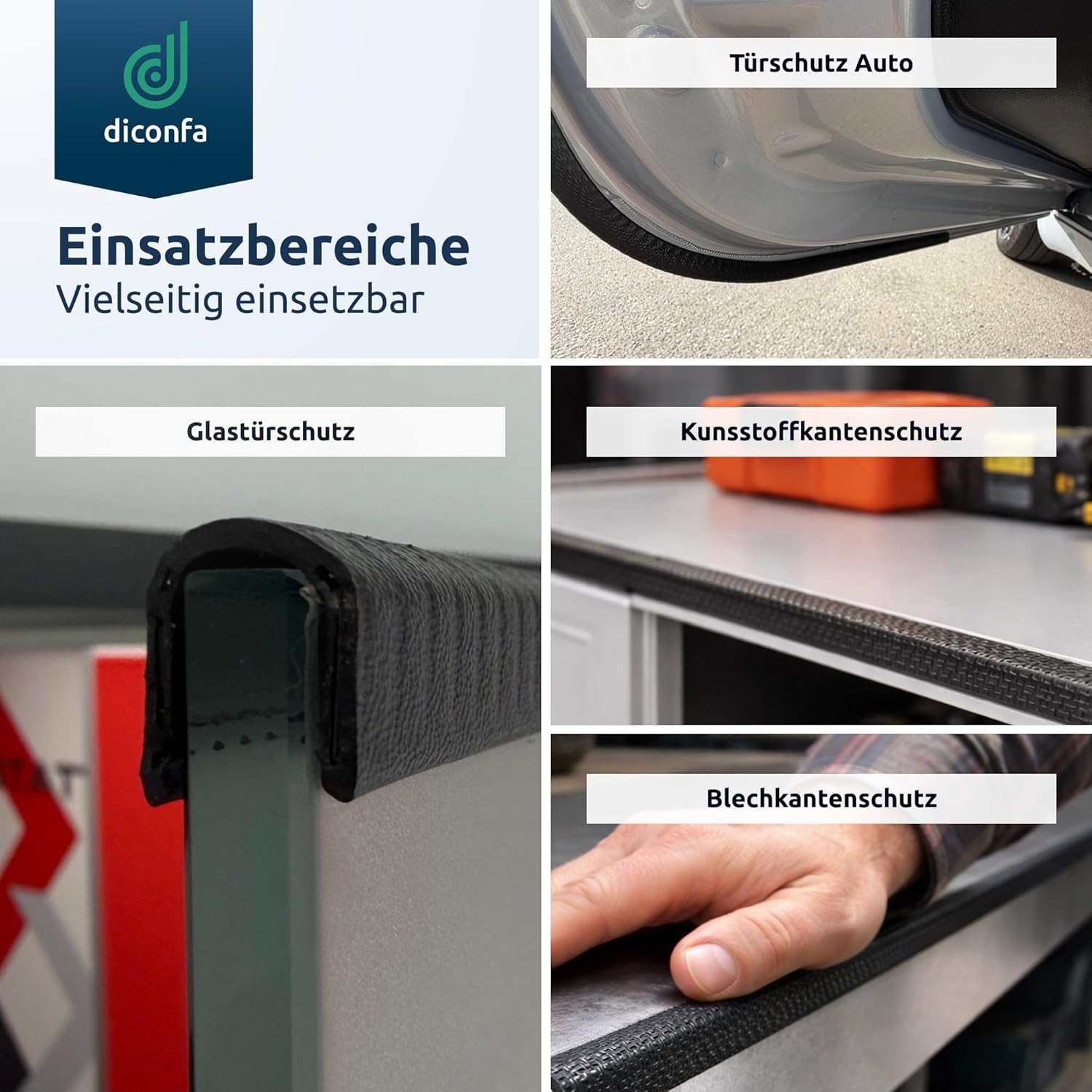

APPLICATION AREAS: Designed for use in metalworking, mechanical engineering, automotive bodywork and door edges, furniture manufacturing, glass processing, boatbuilding, logistics and transport protection, motorhome and camper outfitting, window and door finishing, household repairs, and maintenance projects. Equally suited for professional workshop environments and private home and garden use.


STANDARDS & TESTING: Produced to precise dimensional tolerances. Each profile is cut to the specified length with accuracy. The PVC compound is UV-resistant and weather-stable for long-term exterior use.

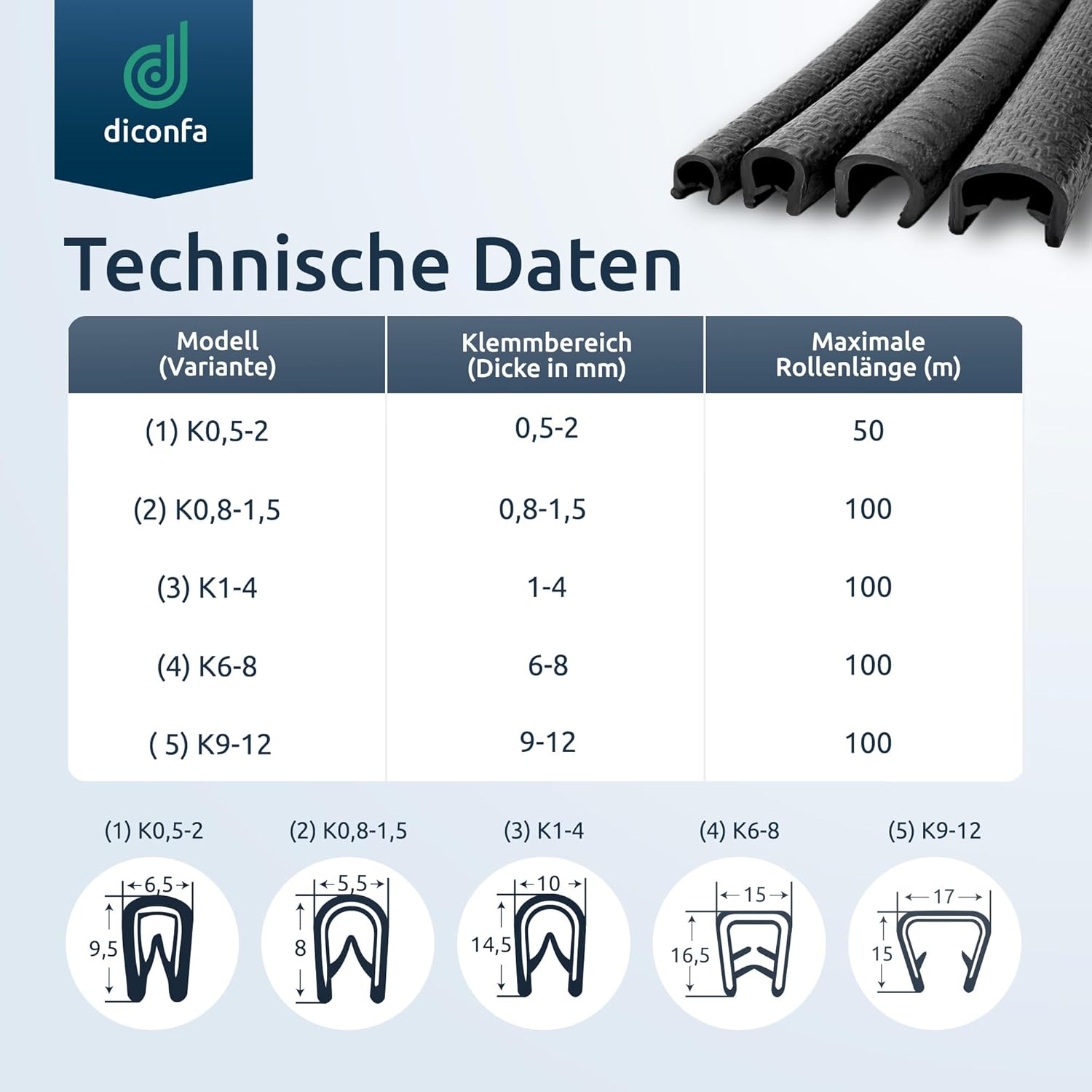

TECHNICAL DATA: Profile type: U-profile with sealing lips. Material: PVC black matt with steel insert. Clamping ranges available: 0.5–2 mm, 0.8–1.5 mm, 1–4 mm, 6–8 mm, 9–12 mm. Lengths available: 0.1 m to 100 m. Mounting: self-clamping, no adhesive required.


VARIANTS: Available in five clamping ranges from 0.5 mm up to 12 mm. Lengths range from 0.1 m to 100 m, cut to the specified dimension. Select the appropriate clamping range and length to match your specific application requirements.

acid.product-detail.toleranceTableText
